Garmin Gpsmap1223 12″” Plotter

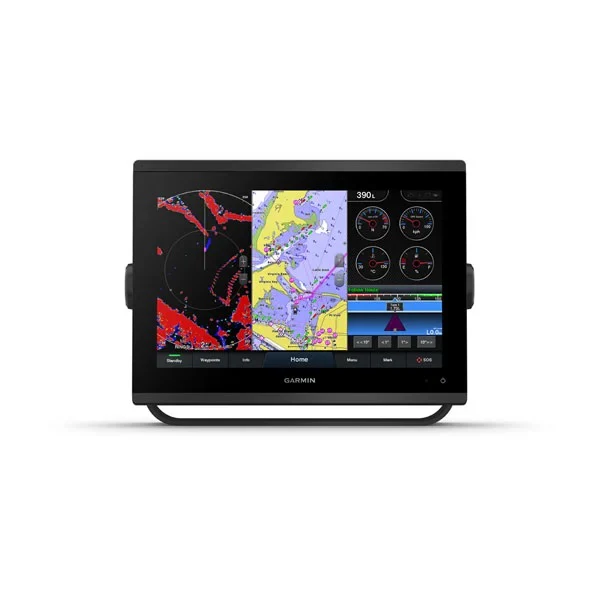

Garmin GPSMAP 1223 Chartplotter with Worldwide Basemap

Model: 010-02367-00

• Easily integrate with more engines.
• Connect to compatible third-party devices with OneHelm™ digital switching.
• Easily build your marine system using the best of network connectivity.
• Compatible with premium maps and charts for the best in Garmin navigation.
• Take the guesswork out of sailing with clear laylines and more — right on the screen.
• Manage your marine experience from nearly anywhere2.

With its sleek design, powerful processing and upgraded IPS display, this advanced 12″ chartplotter integrates seamlessly into your Garmin marine system.

With its powerful technology and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 12″ plotter in a wider range of dash configurations.

New 12″ IPS displays offer improved sunlight readability and wide-angle visibility over previous-generation GPSMAP 12″ Plus devices.

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology and other premium navigation features.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300’ range.

Specifications

General
PHYSICAL DIMENSIONS	12.1″ x 8.9″ x 3.2″ (30.8 x 22.8 x 8.2 cm)
DISPLAY SIZE	10.3″” x 6.4″”; 12.1″” diagonal
DISPLAY RESOLUTION	1280 x 800 pixels
DISPLAY TYPE	WXGA display
WEIGHT	6.6 lbs. (3.0 kg)
WATER RATING	IPX7
POLARIZED SUPPORT	Yes
POWER CONSUMPTION	Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A
ANTENNA	Internal or external over NMEA 2000
MOUNTING OPTIONS	Bail, flush or flat
RECEIVER	10 Hz high-sensitivity
GARMIN MARINE NETWORK™ PORTS	2
Maps & Memory
PRELOADED MAPS	worldwide basemap
ACCEPTS DATA CARDS	2 microSD™ cards (back of unit)
WAYPOINTS	5,000
TRACK LOG	50,000 points; 50 saved tracks
ROUTES	100
Outdoor Recreation
TIDE TABLES	Yes
Chartplotter Features
GARMIN RADAR COMPATIBLE	Yes
GARMIN SONAR COMPATIBLE	Yes (with external black box, sold separately)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)	Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)	Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)	Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS	Yes
GSD™ BLACK BOX SONAR SUPPORT	Yes
GCV™ BLACK BOX SONAR SUPPORT	Yes
ACTIVECAPTAIN COMPATIBLE	Yes
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE	Yes
WIRELESS REMOTE COMPATIBLE	Yes
SAILING FEATURES	Yes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE	Yes (with external black box, sold separately)
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE	Yes (with external black box, sold separately)
CHIRP SONAR TECHNOLOGY	Yes (with external black box, sold separately)
CLEARVü	Yes (with external black box, sold separately)
SIDEVü	Yes (with external black box, sold separately)
Connections
NMEA 2000® COMPATIBLE	Yes
NMEA 0183 INPUT PORTS	1
NMEA 0183 OUTPUT PORTS	1
VIDEO INPUT PORTS	1 BNC
VIDEO OUTPUT PORTS	1 HDMI
WIRELESS CONNECTIVITY	Yes
J1939 COMPATIBLE	Yes
